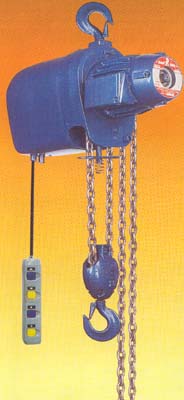

MEDIUM DUTY CHAIN ELECTRIC HOIST, BABY

Manufactured in IS 9001 Certified Company, Assured quality & Interchangeability of parts.
Grade 80 Load Chain, Higher Safety factor & Longer chain life
Rugged German design in use for more than 30 years, Assured Reliability
Precision Machined Case hardened alloy Steel Gears, Long life, noiseless operation
Light weight simple mounting design, Ease of Installation
Built in electrical control panel, Ready to use
Precision Machined & Hardened Load Chain Wheel, Longer life of LCW & chain smooth operation

Specifications

"BABY" with Hook Suspension (Fig. 1)

Capacity		500 Kg.	1000 Kg.	2000 Kg.		500 Kg.	1000 Kg.	2000 Kg.
Chain falls	No.	2	2	4	A	750	750	860
Hoisting speed	m/min	4.8	4.8	2.4	B	150	150	150
Hoist motor	H.P.	1.5	1.5	1.5	C	120	120	120
* Height of max. lift (Std. 3 m)	m	9.6	9.6	4.8	D	31	31	37
Length of control cable	m	At your choice			E	525	525	525
Approx. wt with chains for 3 m. lift	Kg.	63	63	65	F	285	285	285
Approx. wt. per metre additional lift	Kg.	2.6	2.6	5.2

* Higher lifts offered on request

"BABY" with Pull-Push Trolley (Fig. 2)

Capacity		500 Kg.	1000 Kg.	2000 Kg.		500 Kg.	1000 Kg.	2000 Kg.
Min. runway bend (radius of curvature)	mm	1250	1500	1500	A for B Max. A for B Min. B Max. B Min. C Min. D (With Hook) E F G H I J * K MAX	339 84 305 50 125 825 525 285 160 150 120 31 28	354 107 305 58 125 840 525 285 200 150 120 31 28	361 146 305 90 150 965 525 285 275 150 120 37 28
Approx. weight with chains for 3 m lift	Kgs.	67	73	82
Approx. weight per metre additional lift	Kgs.	2.6	2.6	5.2

* To Calculate Clearance under beam substract beam flange thickness from k

* Std supply will be with hook suspension

"BABY" with Electrtic Trolley (Fig. 3)

Capacity		500 Kg.	1000 Kg.	2000 Kg.		500 Kg.	1000 Kg.	2000 Kg.
Travelling Speed	m/min.	10	10	10	A for C Max. A for C Min. B C Max. C Min. D Min. E F G H * J MAX	493 370 840 305 58 150 525 285 31 23 28	493 370 840 305 58 150 525 285 31 23 28	500 395 965 305 90 200 525 285 37 14 28
Travelling Motor	H.P.	0.25	0.25	0.25
Min. runway bend (radius of curvature)	mm	1500	1500	1500
Approx. weight with chains for 3 m lift	Kgs.	87	87	96
Approx. weight per metre additional lift	Kgs.	2.6	2.6	5.2

* To Calculate Clearance under beam substract beam flange thickness from j

Data Tolerance ± 10%
