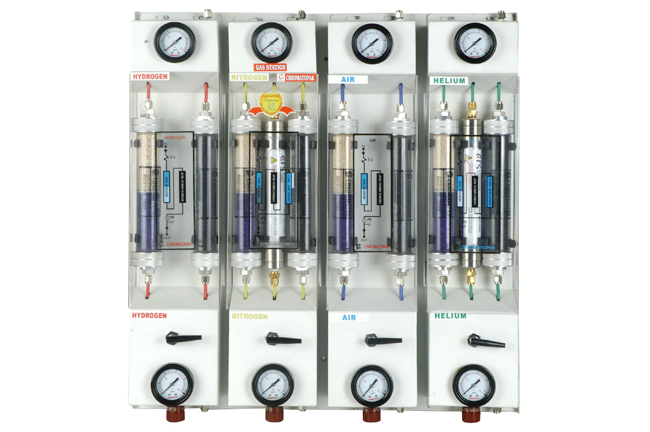

| The Chromatopak Economy Gas Station is a unit to control and purify N2, H2, Air, and He gases (as required) for subsequent use for Gas Chromatography. Each of the four gases has a designated powder coated control panel for purification and control of the designated gas with specifications as under. The unit as a whole is wall-mountable. |
| |
 |
| |
The Panel Designated As Nitrogen & Helium
- Inlet toggle Valve (Brass) rated at 10 kg / cm²
- Inlet & Outlet Pressure Gauge (0-10 kg / cm² ).
- Outlet Pressure Regulator with a locking arrangement (0-10 kg / cm² )
- Gas Filters (Capable of removing oxygen, moisture and hydrocarbons from N2/ Helium).
- Oxygen Trap (CRS USA, Make) (Oxygen removal Capacity 600 cc) capable of filtering out oxygen to a level of 15 ppb.
- Pressure Rating: 10kg / cm² MOC: Aluminum.
- Moisture Trap: A combination of Indicating Silica gel and Molecular Sieve-for drying the gas (self – indicating).
- Pressure Rating : 10kg / cm² MOC: Acrylic
- Hydrocarbon Trap: A Filter consisting of Activated carbon to adsorb traces of hydrocarbons present in the gas.
- Pressure Rating : 10kg / cm² MOC: Acrylic
- Polycarbonate Filter Shield.
- 1/8” Inlet / Outlet Fitting.
- Wall – Mountable, Powder – Coated Enclosure
- Dimensions: H: 500 x W175 mm
- Weight: 3.5 kg.
Panel Designated As Air and Hydrogen
- Inlet toggle Valve (Brass) rated at 10 kg / cm.
- Inlet & Outlet Pressure Gauge (0-10 kg / cm²).
- Outlet Pressure Regulator with a locking arrangement (0-10 kg / cm²)
- Gas Filters (Capable of removing moisture and hydrocarbons from the gas).
- Moisture Trap: A combination of Indicating Silica gel and Molecular Sieve – for drying the gas in acrylic tube (self – Indicating type)
- Pressure Rating: 10kg / cm² MOC: Acrylic
- Hydrocarbon Trap: A Filter consisting of Activated carbon to adsorb traces of hydrocarbons present in the gas.
- Pressure Rating: 10kg / cm² MOC: Acrylic
- Polycarbonate Filter Shield.
- 1/8” Inlet / Outlet Fitting.
- Wall – Mountable – Powder – Coated Enclosure.
- Dimensions: H: 500 x W 175mm.
- Weight: 3.25kg
|
|
