Features Unique to ISMATEC® pumps
- Convex rollers and concave tube- bed:
- Treats the liquid gently (e.g. living cells)
- Improves the delivery stability
- Increases the repeatability
- Guarantees optimum tube centering
- The tube is progressively closed starting from the center outwards
- Changing the tube within 5 seconds:
- The Flowmaster pump-head with flow rates up to 13 l/min
- Disassembling the pump-head in less than 1 minute
- Carrying out programs independently of a PC:
- Creates the application profile in the PC (with ProgEdit software)
- Downloads the file data into the pump memory
- Disconnect the pump from the PC
- Carries out your application on the spot, using the pump as a stand-alone unit
- Unique Coupling system:
- The MCP and BVP drives enable the user to mount a wide range of different pump-heads
- The pump-heads are interchangeable within seconds without using a tool
- More than 14 peristaltic pump-heads are available (1 with PTFE tubing)
Types of Peristaltic pumps

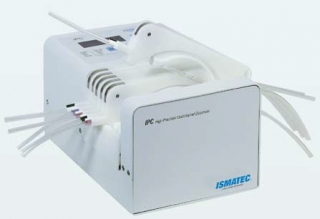

1. Tubing pumps : 4 to 24 channels ( Flow rates : 0.4µl/min – 44ml/min)
-
IPC/IP and IPC- N/ IP – N
- Lowest pulsation , highest accuracy.
- Ideal for analytical applications
- Very high repeatability on all channels
- Planetary drive
![](../cimage34/111175pic145.jpg)
2. Tubing pumps : 2 to 4 channels ( Flow rates 0.001 – 68 ml/min)
-
Reglo Analog/ Digital
- The smallest calibrate able dispensing pump
- Very low pulsation ( model with 12 rollers)
- High repeatability
- 10cm wide, 13.5cm high
![](../cimage34/111175pic146.jpg)
3. Single Channel Tubing pump ( Flow rate : 2.1 – 230 ml/min)
-
Reglo Quick™
- Very fast tubing change- over
- Unique, very user friendly pump head with fast tubing change over
- Variable speed
- Standard tubing
- 10cm wide, 14.3cm high
![](../cimage34/111175pic147.jpg)
4. Tubing Pumps : 1 to 8 Channels (Flow rates: 0.003 – 5400 ml/min)
-
Ecoline
- Economical and powerful
- Stackable pumps for dispensing and filling applications with variable flow rates
- Robust Stainless Steel housing ( stackable)
- 2 – digit potentiometer adjustable in 1% steps
![](../cimage34/111175pic148.jpg)
Peristaltic Pump Systems with Interchangeable pump heads
- Easily interchangeable pump heads
- Mount the pump head without using a tool
- BVP and MCP drives enable the user to choose individually from a wide variety of pump heads.
- No of channels: 1 – 24
- Flow rates range from 0.001ml/min to 3700 ml/min
1. BVP Standard
- Economical
- Robust, Powerful Drive
- Variable speed
- Without dispensing functions
- 3 digit potentiometer for speed setting
![](../cimage34/111175pic149.jpg)
2. MCP Standard
- Multi- Purpose
- Robust, Powerful Drive
- Ideal for dispensing and filling
- Pre programmed tube sizes and pump heads allow to work with flow rates
- Membrane keypad, LED Display
- 4 program memories for saving individual application parameters
![](../cimage34/111175pic150.jpg)
3. BVP Process
- Washdown
- Protection rating of IP 65
- Extremely robust drive
- Microprocessor controlled
- Ideal for applications in a dusty, humid or corrosive environment and in clean room areas
- Without dispensing functions
- Membrane keypad for speed setting, LED Display
- Stainless steel housing
![](../cimage34/111175pic151.jpg)
4. MCP Process
- Programmable
- Programs can be carried out on the spot, independently of a PC
- Protection Rating of IP 65
- Extremely robust drive, suitable for industries
- Ideal for dispensing and filling applications in a dusty, humid or corrosive environment and in clean room areas.
- Pre programmed tube sizes and pump heads allow to work with flow rates
- Membrane keypad, LED Display
- 4 program memories for saving individual application parameters or PC programmed command sequence
![](../cimage34/111175pic152.jpg)
Pump Heads for BVP and MCP Models
1. Single Channel Pump Heads
2. Multi Channel Pump Heads
Heavy Duty Peristaltic Pumps
-
Flowmaster® ( Flow rate : 37ml/min – 13 l/min)
- Ideal for heavy duty processes
- 1 channel, 3 rollers
- The most convinving solution for fluid transfer in biotechnology, as well as pharmaceutical, food and beverage industries.
- Ideal for dispensing and filling applications in a dusty, humid or corrosive environment and in clean room areas
- Convex rollers treat liquid and tubing gently
- Protection Rating of IP 65
![](../cimage34/111175pic153.jpg)
|
|
