Clean Gloves, nylon, lint free large PN 8650-0030 / small 8650-0029
Abrasive paper, 8000 grit PN 8660-0852
Cotton Swabs PN 5080-5400
Why Choose Agilent Original Lamps
For best chromatographic results:
Agilent lamps are developed with Agilent detectors
Strong cooperation between lamps suppliers and Agilent R&D
Every lamp is shipped with a test certificate
Exchange possibility if lamp does not met specification
How do we Support our Lamp Quality
Every lamp is shipped with a certificate
Every lamp has a 2000 or 1000 hours warranty
Objective of Improvement
Develop a more robust and stable lamp Reduce stepping and spiking effects.
Solution New cathode with larger surface.
The cathode wire is wrapped with a very thin wire, which increases the surface. The increased surface can hold now more coating material.
The bigger amount of coating material improves the robustness and stability of the lamp. There will be less stepping and spiking effects, which leads also to a longer life time. (We give the same 2000 hours life time guarantee as for the current lamps)
Old
New
The new wire has a bigger surface which holds more coating More coating for better stability
Old
New

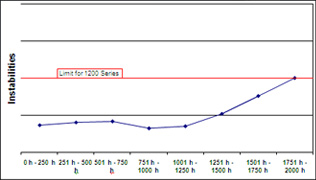

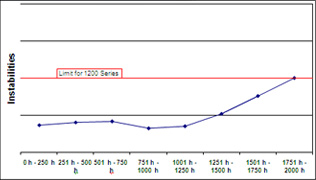

More stability, more robustness with new cathode
Low noise is available over longer time
(The test results represent 5 lamps of each type over 2000 hours.)
DAD/MWD 2140-0820
VWD G1314-60101
Radio Frequency Identification Tags RFID tags records all relevant data necessary to recall instrument conditions under which a run has been executed.
Minimizes the risk of false data interpretation, because measurement conditions are documented. Meta data stored on RFID tags are saved with each raw data file for unambiguous answers to (auditor-) questions like:
"Did the accumulated burn-time of the lamp exceed pre-defined limit?"
Recorded data:
Accumulated on-time Actual on-time Number of ignitions Date last test passed Product number Serial number Production date
Situation
Cost of ownership is becoming an important aspect when deciding for a new instrument
Lamps are the biggest cost factor running a LC, CE our UV-VIS instrument
The life time of lamps has been significantly improved during the past years, but still needs relative frequent replacement
As soon a customer do sensitive test
As soon a customer need high light intensity

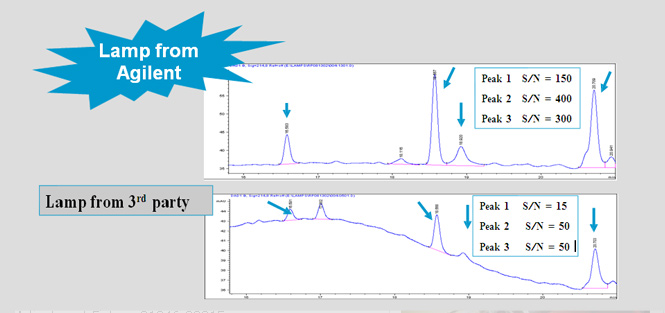

DAD Lamp comparison
Parameter
Original Agilent Lamp
PN 5181-1530
3rd Party Lamp
Remarks
Meets alignment specifications for use in Agilent detector
YES
No
Aligment is very important for a shine through lamp
Meets Noise specifications for use in Agilent detector
YES
No
The Detector can not meet noise specifications if the lamp does not meet specs
Cap to reduce noise and for easy handling
YES
No
The Cap has been Designed to Reduce the noise of the lamp and simplify handling of the lamp
Lamp Aligned and tested by Agilent

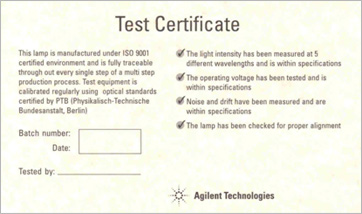

Agilent Test Certificate
YES
NO
Ensures correct alignment and verifies specifications Every lamp is shipped with agilent Test Certificate
Agilent System Guarantee
YES
NO
Agilent can only give guarantee for the instrument of original supplies are used
Agilent lamps are developed with Agilent detectors
Strong cooperation between lamps suppliers and Agilent R&D
Best lamp for Best chromatographic results
Every lamp is shipped with a test certificate
Exchange possibility if lamp does not met specification
Active Inlet Valve Cartridge
Purge Valve
Plunger Seal
Needle seat
Outlet Ball Valve
PTFE Frit
Active Inlet Valve
Rotor Seal
Glass Filter
Stator Face
In the top 10 we have
6 Pump Maintenance parts
3 Sampler Maintenance parts
Pore size of the column inlet frits -> 0.2 µm Filtration -> extremely important
Filtration of mobile phase

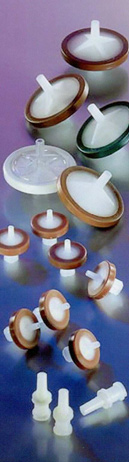

Filtration of sample

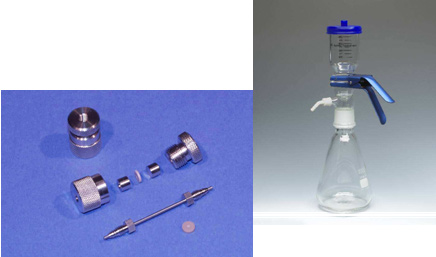

Use in-line filter
New RRLC systems are shipped with in-line filter
Agilent offers broad range of filtration products
Description
Frit porosity (um)
Frit inlet
ID (mm)
Comments
Part
Number
Replaceme nt Frits
RRLC in line filter 4.6mm
0.2um pore size (600Bar)
0.2
4.6
600 Bar
5067- 1553
5062-1562
(10/pk)
RRLC in line filter 2.1mm,
0.2um pore size (600Bar)
Designed for low carryover
Direct connection to the injection valve or the column
1200-bar compatibility
Dead volume-----------1.3ul
Filter ----------- 0.3um
Rigid or flexible capillaries
1290 Infinity Inline Filter (0.3um)
5067-4638
1
Filter cap
Non orderable
2
Filter housing
Non orderable
3
Fitting insert
Non orderable
4
SST capillary rigid
5067-4637
5
SST capillary flexible
5064-4636
6
Filter frits (0.3um)
5023-0271 (5/pk)

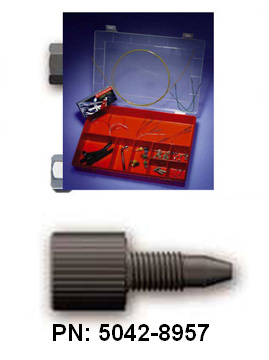

1/32 PEEK coated fused silica capillaries for Micro and Nano LC
Fitting type
Part
Module
EMPV Flow sensor
Metering device Injection needle
Pump
Sampler
Injection valve
Sampler
Column
Oven
Standard Swagelock fittings for proper sealing at 1200 bar
Standard Swagelock fittings for proper sealing at 1200 bar
Standard Swagelock fittings for proper sealing at 1200 bar

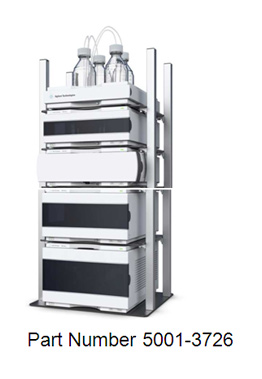

Agilent LC system secure
Fast and Safe access to instruments and cables during maintenance procedures and modules transfers
Open design that ensures proper airflow management and power distribution of equipment and cabling
Easy setup, assembles in minutes with no specialized tools required
Adjustable helves for all Agilent 1100 Series, 1200 Series and 1290 Infinity LC modules
Possibility attach the rack to the work bench for maximum stability
Most Important
Why Choose Agilent Original Lamps
Pore size of the column inlet frits -> 0.2 µm
Designed for low carryover
Agilent LC system secure
Cost of ownership is becoming an important aspect when deciding for a new instrument
Lamps are the biggest cost factor running a LC, CE our UV-VIS instrument
The life time of lamps has been significantly improved during the past years, but still needs relative frequent replacement
