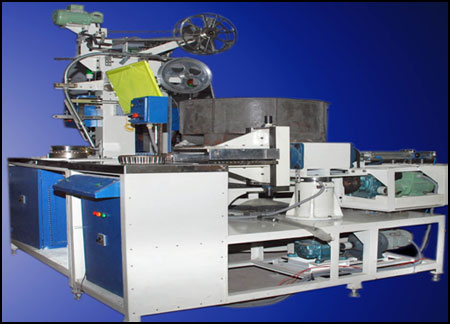

Poly Packed Rollers StrippedFor Auto Controlled
Free Fall of Taper Rollers in between the Cage
and Cone while the waste Poly Pack is wound
separately & the Cone/Cage/ with Roller Sub
Assy is Flipped for Control of Assy Height.

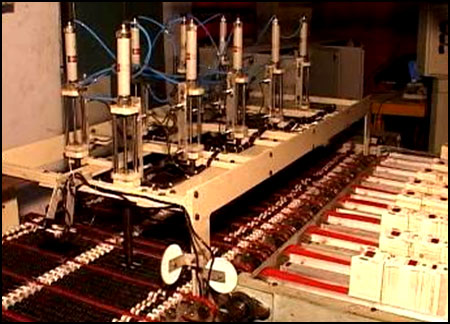

02. FULLY AUTOMATED M/C FOR SEGREGATION OF
FAULTY PRINTS OF CIGARETTE- PACK FLAPS
(PNEUMO MECHANICAL SYSTEM DESIGNED &
MANUFACTURED BY US WHILE AUTO CONTROL
SYSTEM DESIGNED & INSTALLED BY CUSTOMER) :
Cigarette pack flaps with Faulty prints are auto
segregated & conveyed across to an Air Table
while 5 sets of Correct ones take a 90 deg. turn & conveyed to a position to be merged with
the second set of four having the a same motion
to reach the next station.
03.A SEPARATE VIEW OF FLIPPING MACHINE :

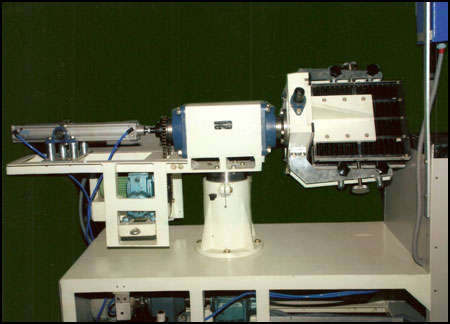

Auto Flipping of Cage-Cone- Roller sub assly
for
auto total height Control.

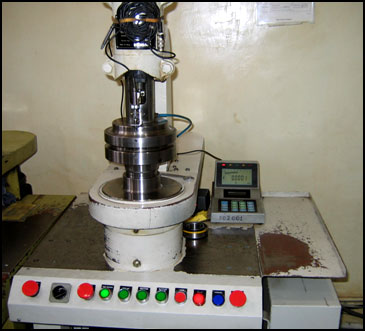

04.BENCH END LATERAL PLAY CONTROL MACHINE :
Auto check and control of Lateral Play of Taper Roller Bearing Assembly on specific load.
A FEW SAMPLES OF TOOLING & CHECKING FIXTURES
A few Tooling for Automated
Taper Roller Bearing Line.

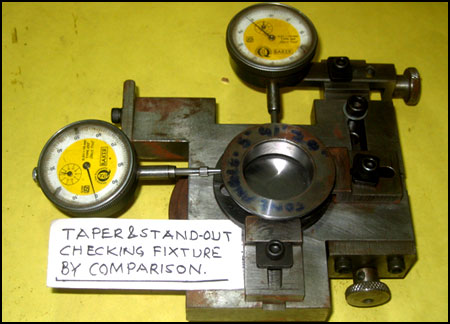

Checking Fixture to check the specific dia at a particular plan of the Taper surface from the reference face and the Taper angle along with the Standout by pair of indicator through comparison method.
