Four variants are available -

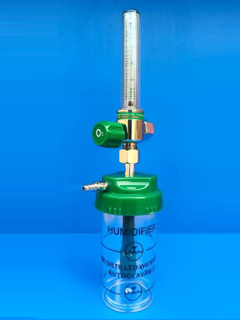

BPC Oxygen Flowmeter Neonate : 0-3 LPM (For Infant use only)

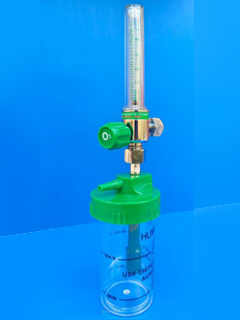

BPC Oxygen Flowmeter Pediatric : 0-5 LPM (For Paediatric use only)

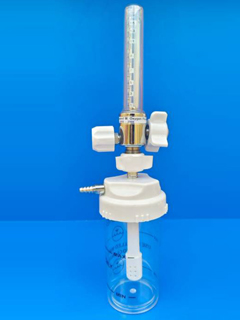

BPC Oxygen Flowmeter Adult : 0-15 l LPM (For Adult use only)

Expanded BPC Oxygen Flowmeter Adult : 0-15 LPM (For Adult use)

FEATURES

1) Back pressure compensated design to give specified accuracy for entire range

2) Standard Thorpe style for medical Oxygen (Adult, Paediatric, Neonate)

3) Precise step-less control

4) Chromium plated Brass body with SS 304 wire mesh filter

5) Durable impact resistant Polycarbonate measuring tube and outer tube

6) Transparent, clearly readable and permanent graduated column

7) Adaptable to Quick connect or DISS probes / connectors

8) Standard 1/8" BSPT with option of 3/8" BSP RH inlet connection

9) Suitable for MGPS or through regulator with steady 4 bar outlet pressure.

Certifications : ISO 9001:2015 - QA Certification Services Pvt. Ltd.

Certificate No. : QACS-UAF-Q-SS-01.24.1172

CE - Fair Certification Services

Certificate No. : ASSE20721R46

ISO 13485:2016 - Medical Devices - Quality Management Systems.

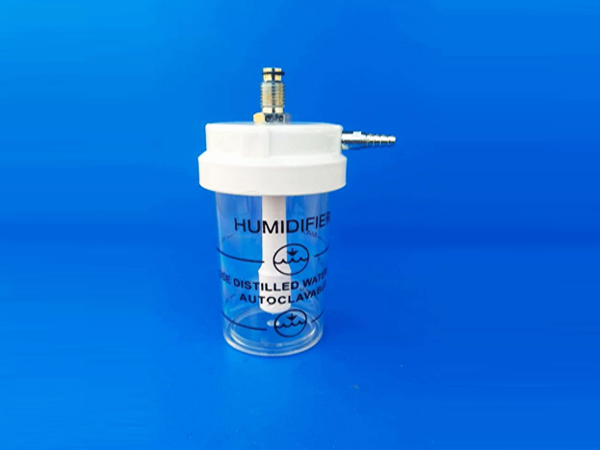

FEATURES

1) Construction Material: Polycarbonate - Shatter Resistant

2) Flow : Up to 15LPM @ 4 bar (58 psi)

3) Inlet Connection Port : DISS Female Adapter with Chrome Plated Brass nut embedded in ABS for hand-tightening

4) Non-Heated and Reusable

5) Over Pressure Safety Valve

6) Autoclavable at 121 C (249.8 F) for 5 minutes (Minimum 5 Autoclave Cycles)

7) Optimal RH Achievable at various flow settings

8) Possible to integrate into an Oxygen Concentrator, Sleep Apnoea therapy equipment

9) Micro Bubbles through Humidifier for efficient humidification

10) Patient connection port : Tapered hose barb suitable for 6 mm inner diameter plastic tubing

11) A passive process to humidify dry therapeutic gas (Category 3 Humidification)

Certifications - ISO 9001:2015 - QA Certification Services Pvt. Ltd.

Certificate No. - QACS-UAF-Q-SS-01.24.1172

CE - Fair Certification Services

Certificate No. - ASSE20721R46

ISO 13485:2016 - Medical Devices - Quality Management Systems

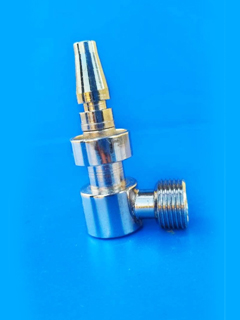

Single Adopter

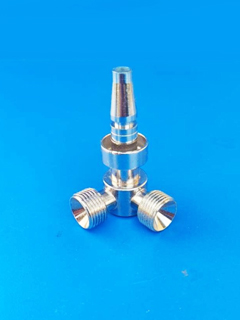

Double Adopter

Y Connector
