SM1202E [ 12 Channel Audio Mixer ]
12 Channel Un-Balance Echo Mixer I Frequency 25 Hz - 20KHz
Mic Input 1/4"/2K Ohms / Gain - 10 dB to 50 dB
Mono Line Input 1/4"/10K Ohms. Channel 1 to 12
Output 0 dBm / 17 dBm (775 mv / 5.5v) I S/N Ratio 70 dB
3 Band active EQ on each Channels ( LOW/MID/HIGH)
2 Aux send (Pre-Fader & Post Fader) level, Pan on each Channel
Digital Echo I Output metering 10 Segment LED I Distortion 0.01%
Fader 30mm for each channel I Output connector 1/4" Unbalance.
Power Supply : 11VA MAX @ AC 220V/50Hz
Dimension : 510 (W) x 305 (D) x 110 (H) mm
Weight : 4.800 Kgs
|
| |
|
SM80U
8 Channel Un-Balance Input / Output Digital Echo Mixer Frequency 25 Hz - 20 Khz Fader 30 mm for each channel Mic Input 1/4” / 2K Ohms / Gain - 10 db to - 50 db Mono Line Input 1/4” / 10k Ohms. Channel 1 Output 0 dbm / 17 dbm ( 775mv / 5.5 V ) Tone Controls Bass + 16 db /
MID + 10db / Treble + 16 db Effect Return 1/4” / Gain - 30 db max. Effect Send ( Pre-fader) 1 no. 0 db to 5.5 V max
Channel Sig. Indication Clip LED Output metering 10 Segment LED Output Connector 1/4” unbalance S/N Ratio 70 db Distortion 0.01% Mp3 Player with USB & MMC Card Slot with LCD Display
Power Supply : 9 VA Max @ AC 220V / 50 Hz
Dimension : 355 (W) x 355 (D) x 105 (H) mm
Weight : 3.900 Kgs. |
|
 |
|
| |
 |
|
SM1202X [ 12 Channel Low Noise Audio Mixer ]
12 Channel Balance Input-Output I Frequency 25Hz to 25 KHz
Mic Input 2K Ohms / Gain - 10dB to - 60dB
Line Input 20K Ohms Balanced / 42dB
Main Out (L+R) XLR Balance/Unbalance PL 1/4" Socket
Stereo RCA output for recording
3 Band active EQ on each channel (Low / Mid / High).
3 AUX send 9Pre-fader & Post-fader), level & Panel Control each channel I 60mm long taper faders I Digital Echo
Monitor for Headphone Control I S/N Ratio 89 dB I Distortion 0.01%
Power Supply: 21VA MAX @ AC220V / 50Hz
Dimension : 545 (W) x 395 (D) x 120 (H) mm
Weight : 5.900 Kgs |
| |
|
|
| |
C15 [ GUITAR, KEYBOARD & MIC ]
15 Watts I 6" Speaker I 3 Input 2 Channels I Digital Echo & Distortion Effect
3 Way Tone Control Bass / Mid / Treble I Headphone / Line Out
Compact size, metal grill & all plywood Rexine finish
Power Supply : AC 220V 50Hz
Dimension : 242 (W) x 158 (D) 245 (H)
Weight : 3.600 kgs. |
|
 |
|
| |
|
|
 |
|
C 20 [ GUITAR, KEYBOARD & MIC ]
20 Watts RMS 8” Heavy Duty Speaker Bass / Mid / Treble + 10 db 3 Individual Channels for Guitar / Keyboard / Mic Low Impedance Line Out and Headphone Compact Size Metal Grill and all Plywood Rexine finish Power Supply : AC 230V 50 Hz
Dimensions : 275 (W) x 153 (D) x 300 (H)
Weight : 4.700 Kgs. |
| |
|
|
| |
PM102 [ GUITAR, OCTAPAD / KEYBOARD & MIC]
120 Watts I 12" Heavy Duty Speaker & Horn Tweeter I 1/4" line out.
3 Channel with individual controls I 1.Mic - Low Impedance
2. AUX for (Octopad / Keyboard) IV / 10 K Ohms ( Stereo Input).
3. Guitar - Lead Guitar I Tone Control Bass / Low - Mid / Hi-Mid / Treble
± 10dB
Clip control switch to protect overdrive I Power Supply : AC 220V 50 Hz
Compact size, metal grill & all plywood carpet finish.
Dimension: 400 (W) x 380 (D) x 500 (H) mm
Weight : 16,900 Kgs. |
|
 |
|
| |
|
|
 |
|
HD215
2 way sound reinforcement system I Twin 15" with 68mm, Voice Coil.
Titanium Compression Driver with Horn.
700 Watts Prog., 1400 Watts Peak.
Heavy Duty Crossover I Heavy Duty Metal Grill
Dimension : 1240 (H) x 480 (W) x 380 (D) mm.
Weight: 40.350
|
| |
|
|
| |

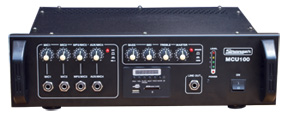

MCU 100
100 Watts RMS Output at 4/8/16 OHMS 100 Volts
Input 4 Mic / 1 Aux 3 way Tone Control Master Control Output Bar Graph LED Horn Speaker Switch
Protection : DC Circuit Breaker for Overload & AC Glass Fuse Power Supply : AC 220 V 50 Hz / 12 V Battery Dimension : 416 (W) x 320 (D) x 130 (H) mm
Weight : 8.350 Kgs. |
|
 |
|
| |
|
|
 |
|

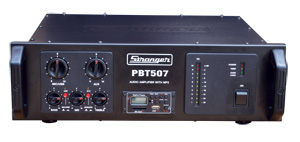

PBT 507
500 Watts RMS Output at 2/4 ohms 70& 100 Volts
Force Cooling 3 Way Tone Control Horn Speaker Switch Protection : AC Bi-Metal Circuit Breaker, Short Circuit & Over Temperature with Visual with LED Indication Input Aux, Mic / Mp3 Player with USB & MMC Card Slot with LCD Display Power Supply : AC 220V 50 Hz.
Dimension : 483 (W) x 425 (D) x 155 (H) mm
Weight : 21.100 Kgs. |
| |
|
|
| |

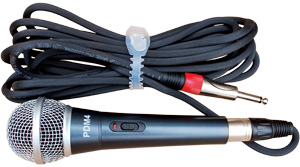

PDM4
VOCAL MICROPHONE
Frequency Response 50 - 16500 Hz
Weight: 0.600 Kg.
|
|
 |
|
| |
|
|
 |
|

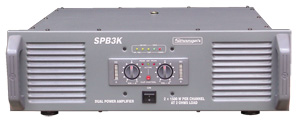

SPB3K
2x1500 Watts at 2 Ohms / 1050 W. at 4 Ohms / 520 W. at 8 Ohms
Balance / Unbalance Input I Force Cooling by 2No. 4" AC Fan I Clip Control Protection : Temp., DC, RFI, Short Circuit, Overload, Mains over Voltage Output Bar Graph LED I Power Supply : AC 220V 50Hz.
Dimension : 483 (W) x 510 (D) x 155 (H) mm
Weight: 30.100kgs.
|
| |
|
|
| |
SVP2 [ Stereo Volume Pedal (Optical)]
Battery Operated I 2 Input & 2 Output (1/4 Inch) Socket
Zero level setting control I ABS Moulded Cabinet
Dimension : 93 (W) x 215 (D) x 58 (H) mm
Weight : 530 grams.
|
|
 |
|
| |
|
|
