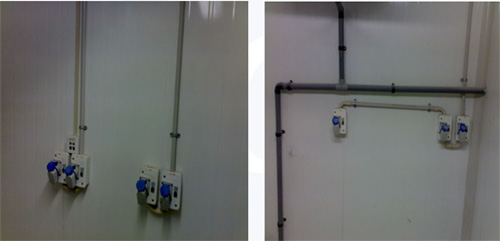

Proper routing of piping inside cold room |
![](../cimage30/110438pics_25.jpg) |

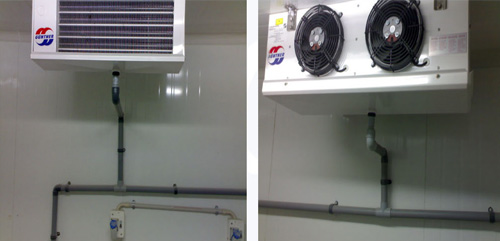

Proper routing of piping inside cold room |
![](../cimage30/110438pics_26.jpg) |

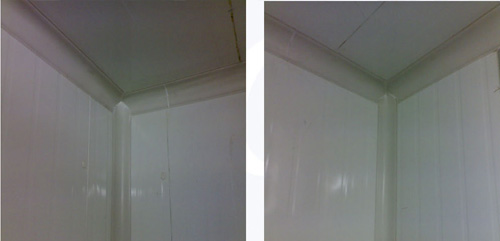

Coving application at all comers- looks very good |
![](../cimage30/110438pics_27.jpg) |
|
|

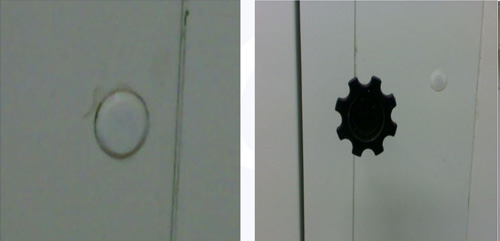

100% of the cam locks with caps |
100% of the push rods were
operational from inside |
|
![](../cimage30/110438pics_28.jpg) |

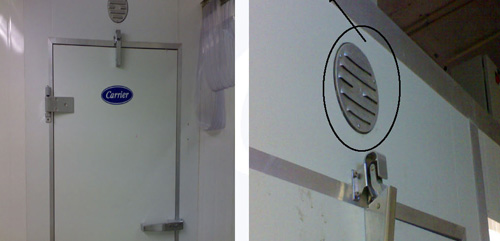

Application of pressure release valve |
![](../cimage30/110438pics_29.jpg) |

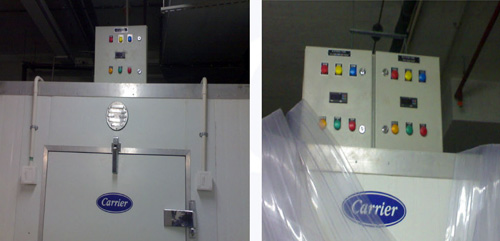

Each cold room were having control panel above it for better control |
![](../cimage30/110438pics_30.jpg) |

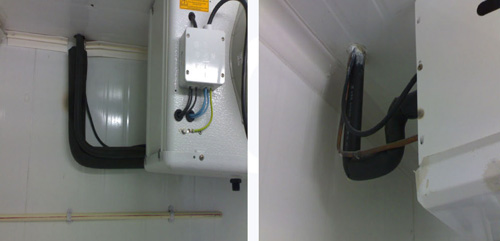

Proper insulation & routing of pipings |
![](../cimage30/110438pics_31.jpg) |

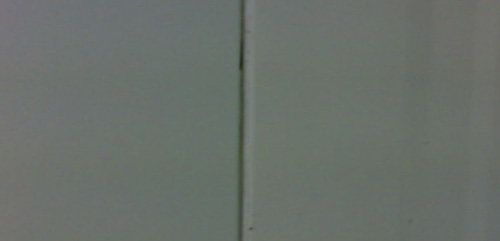

Gap between most of panels was appropriate |
![](../cimage30/110438pics_32.jpg) |

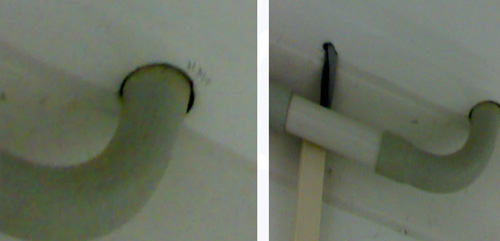

Proper cutting of panels for piping & wiring |
![](../cimage30/110438pics_33.jpg) |

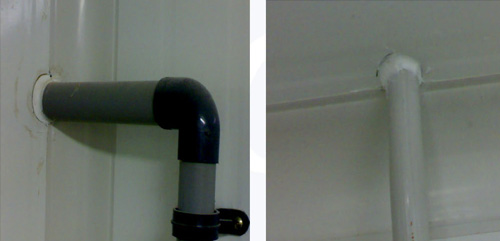

Proper silicone filling |
![](../cimage30/110438pics_34.jpg) |

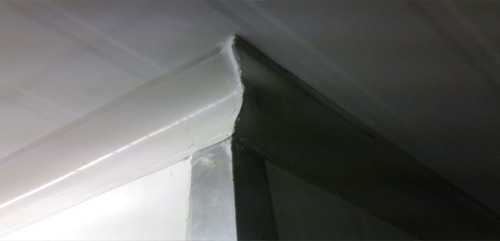

Proper cornering of covings (done 100% manually) |
![](../cimage30/110438pics_35.jpg) |

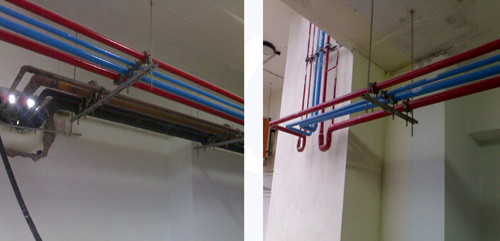

Proper outside pipe routing with colour ID |
![](../cimage30/110438pics_36.jpg) |
|
![](../cimage30/110438pics_37.jpg) |

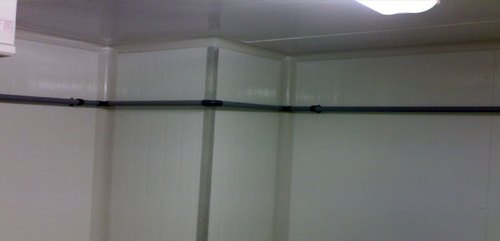

Good Example of proper routing |
![](../cimage30/110438pics_38.jpg) |

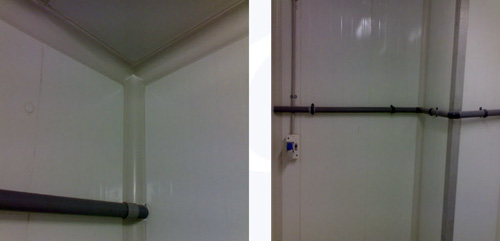

Good Example of proper routing |
![](../cimage30/110438pics_39.jpg) |
