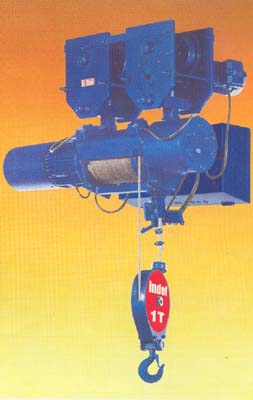

HEAVY DUTY WIRE ROPE HOIST
- Heavy
Duty Class IV Robust Design, Smooth operation even in toughest of
application.
- Manufactured
in ISO 9001 Certified Company, Assured quality and
Interchangeability of parts.
- Truly
Modular Construction, Easily accessible separate brake, motor, drum,
gear box & panel unit.
- Seamless
Pipe Accurately Machined rope drum, Long life
- Unique
and Sturdy rope guide arrangement, Prevents rope slackening and easy
change of rope
- Precision
Machine Cut Case-Hardened Alloy Steel gears, Noiseless Operation
Longlife
- Fail
Safe Disc Brake, Trouble free operation and ease of adjustment
- Built
in Control Panel with Std. Electricals, Ready to Use.
|
| |
|
|
| Specifications |
Capacity
Kg. |
Model |
Lifting
Speed mpm |
Motor
Kw |
Headroom
Fixed
Suspension |
Headroom
With
PT |
Headroom
With
GT/ET |
Weight
Fixed
Suspension
(Kg) |
Weight
With
ET
(Kg) |
Single
Speed |
Two
Speed |
50 |
HC1
005 DL
HC1
005 DH |
--
-- |
12/3
16/4 |
0.25/0.8
0.25/0.8 |
370
370 |
455
455 |
470
470 |
35
35 |
70
70 |
80 |
HC1
008 NL
HC1
008 DL
HC1
008 DH |
8
--
-- |
--
8/2
12/3 |
0.25
0.25/0.8
0.25/0.8 |
370
370
370 |
455
455
455 |
470
470
470 |
30
35
35 |
65
70
70 |
125 |
HC1
012 NH
HC1
012 DH |
8
-- |
--
8/2 |
0.25
0.25/0.8 |
370
370 |
455
455 |
470
470 |
30
35 |
65
70 |
250 |
HC1
025 NL
HC1
014 DL
HC1
025 NH
HC1
025 DH |
4
--
8
-- |
--
4/1.3
--
8/2.6 |
0.25
0.2/0.08
0.5
0.55/0.18 |
370
370
400
400 |
455
455
485
485 |
470
470
500
500 |
30
35
40
44 |
65
70
75
79 |
500 |
HC2
050 NL
HC2
050 DL
HC3
050 NH
HC3
050 DH |
4
--
8
-- |
--
4/1.3
--
8/2.6 |
0.5
0.55/0.18
0.9
0.8/0.3 |
400
400
460
460 |
485
485
545
545 |
500
500
560
560 |
40
44
55
60 |
75
79
90
95 |
1000 |
HC3
100 NL
HC3
100 DL
HC4
100 NH
HC4
100 DH |
4
--
8
-- |
--
4/1.3
--
8/2.6 |
0.9
0.8/0.3
1.84
1.7/0.6 |
460
460
520
520 |
560
560
620
620 |
560
560
620
620 |
55
60
90
94 |
90
95
125
129 |
2000 |
HC4
200 NL
HC4
200 DL |
4
-- |
--
4/1.3 |
1.84
1.7/0.6 |
520
520 |
620
620 |
620
620 |
90
94 |
135
139 |
2500 |
HC4
250 NL
HC4
250 DL |
4
-- |
--
4/1.3 |
2.2
2.5/0.8 |
520
520 |
670
670 |
670
670 |
90
98 |
150
158 |
3000 |
HC4
300 NL
HC4
300 DL |
3.3
-- |
--
3.3/1.1 |
3
3/1.1 |
520
520 |
670
670 |
670
670 |
90
98 |
150
158 |
|
| All Dimensions in mm.
Data is subjected to change without prior notice |
Data Tolerance ±
10% |
|
| |
|
