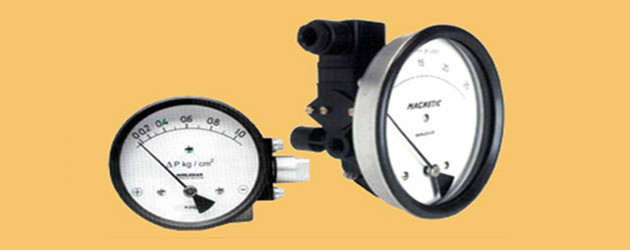

| Differential Pressure Gauges |
 |
|
| |
 |
| |
| |
Piston Type Differential Pressure Gauges:
Specification:
Magnetic coupling Piston type Differential Pressure Gauges
(CE Certified model)
These gauges are suitable for Non-Magnetic Fluids only.
Range : various ranges from 0.25 to 10 bar
Dial Size: various options like 2”, 2 1/2”, 3 1/2”, 4”, 4 1/2”, 6” dia.
Connection : 1/4” NPT - F (Optional BSP)
Accuracy : + / - 2% FSD (Ascending)
Working Pressure : High static pressure - 100 Kg/cm2
Porting : Options like - In–Line, Back or, Bottom
Calibration: Non-Linear, spread over 65 degrees to 75 degrees Arc.
Sensing Element : Piston
Wetted parts : Aluminium, Brass, SS 316, Buna N, Viton
Max. Working Temp.: Max. 80 degree C if Buna N is used, it can be max. 200 degree C if Viton is used.
Enclosure : IP 65
Singe or, Duel Reed Switch Contacts can be provided along with DP Gauge, either in IP 65 or, in Flameproof enclosure |
| |
| |
|
| Diaphragm type Differential Pressure Gauges: |
| |
Magnetic coupling Diaphragm type Differential Pressure Gauge
(CE Certified model)
 These gauges are suitable for Non-Magnetic Fluids only.
Ranges: Various DP ranges from 15 mmwc upto 7 bar.
We can also offer Compound ranges in series DGC 300 and series MAGNETIC
Dial sizes: Various options like 2 1/2”, 3 1/2”, 4”, 4 1/2”, 6” dia.
Connection: 1/4” NPT-F (Optional Male)
Accuracy: + / - 2% FSD (Ascending)
Working Pressure: Various options up to 100 bar
Porting: Options like In - Line. Back or, Bottom
Calibration: Non-Linear, spread over 65 degrees to 75 degrees Arc.
Sensing Element: Small Convoluted Diaphragm
Wetted parts: Aluminium, Brass, SS 316, Industrial Plastic, Buna N, Viton
Max. working Temp: Max. 80 degree C if Buna N is used and can be max. 200 degree C if Viton is used.
Enclosure: IP 65
Single or, Duel Reed Switch Contacts can be provided along with the DO Gage, either in IP ^5 or, Flameproof enclosure.
|
| |
| |
| |
|
|
